In 2006 it was suggested to me
by a customer friend that I make brass saddles for Charvel guitars. Having access to a CNC mill
made it possible.
First was Charvel Reproduction size of .816" x .402" x .223".
These saddles will also fit many other bridges including some Fender bridges.
Second came saddles for more Fender guitars. These measure .816" x .430" x .223".
They fit vintage Fender and
several other bridges.
.816" x .410" x .223"
with offset screw for
Fender American Series and Fender American Standard
.816" x .410" x .223" with
center intonation screw is the newest in our line of brass saddles. These are the saddles you will need if your guitar is a new American made Fender with center intonation screw.

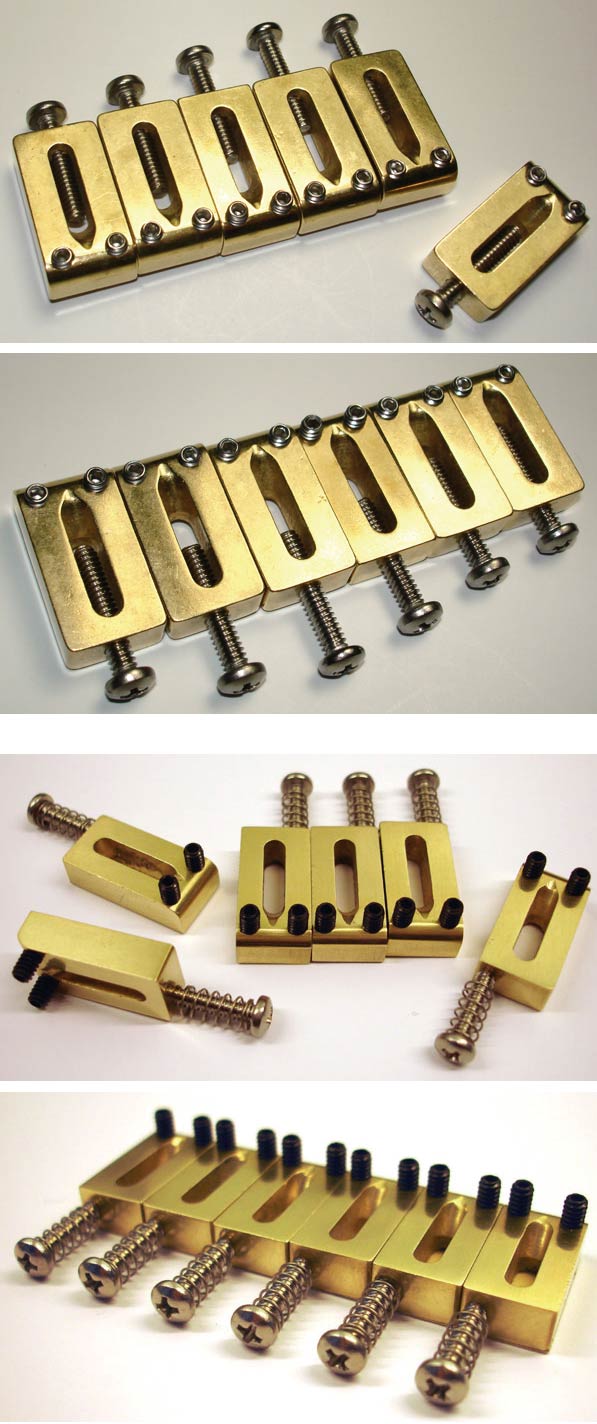

All saddles come in sets of six with all hardware including springs.
All threads are #4-40 SAE.
You MUST determine which of these saddles you need before ordering. The only measurement that varies is the width. To find E to E string spacing take saddle width (.430" for example) times 5.
